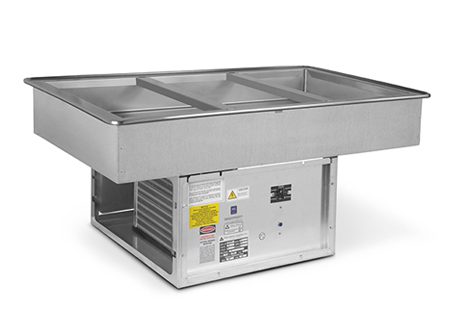

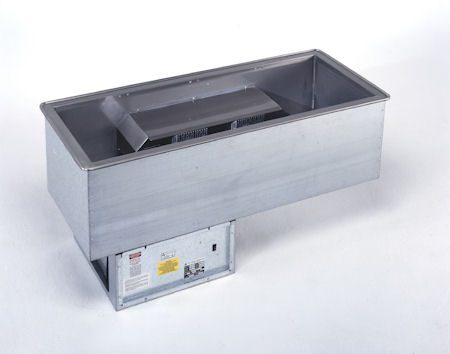

WCM drop-in refrigerated cold pan with self-contained refrigeration by Atlas Metal

(Refrigerated Cold Pan – Standard Depth; Non NSF-7)

The drop-in pan can be installed in virtually any counter and can be provided as fully self-contained—just plug it in and turn it on, or remote, where there’s a need to locate the compressor at a different location.

The pan is fully insulated for maximum efficiency and energy savings, and is provided with a factory-applied gasket so that it can be installed in the finest wood fixtures without marring the countertop. The pan is constructed of stainless steel and is provided with a 3/4″ stainless steel drain. The cold pan accommodates standard 12″ x 20″ pans, perfect for any cold food serving application.

Features

Fully insulated for maximum efficiency and energy savings
Factory-applied gasket makes installation a snap and seals units to the countertop, thus eliminating seepage
Accommodates standard 12″ x 20″ pans with the use of separator channel(s), or fractional size pans with the use of optional adapter bars
1-Year Parts & Labor Warranty
NSF Certified (non NSF-7); UL Listed

Top

Constructed of 18-gauge, type 304 stainless steel, die stamped with a raised perimeter bead.
There shall be a solid vinyl gasket under the beaded edge to form a seal with the countertop, thus preventing seepage or marring of the countertop.
Embossed mounting lugs are provided along the inner surface of the top to hold the removable separator channels in place.

Liner

The inner liner shall be 18-gauge, type 304 stainless steel, one piece construction, all welded, ground and polished to a uniform finish.
All corners are coved with a minimum 1/4″ radius.
The liner has copper tubing firmly soldered to the exterior bottom.
A 3/4″ diameter drain with strainer, 4″ PVC nipple, and valve is provided.

Insulation

The pan fully insulated with high density polystyrene, 1″ thick on all sides, 1-1/2″ thick on the bottom and enclosed with a 22-gauge galvanized steel outer liner.
The entire unit is removable without the use of tools.

Refrigeration System

The compressor housing shall be fabricated from 14-gauge galvanized angles and bolted to the base of the unit.
A fully self-contained condensing unit is provided with a hermetically sealed compressor and a thermostat control.
The system is fully charged with CFC-free refrigerant and ready to operate.

Note

Proper ventilation must be provided in counter.

Electrical

The unit will be wired for 15-amp, 120-volt, single-phase with an on/off thermostat switch and pilot light.
A 6′-long, 3-wire cord and plug (NEMA 5-15P) will be provided.
