WCMDCL – Slim-Line Refrigerated Cold Pan

Find a Rep

Ask a Question

Find a Rep Ask a Question

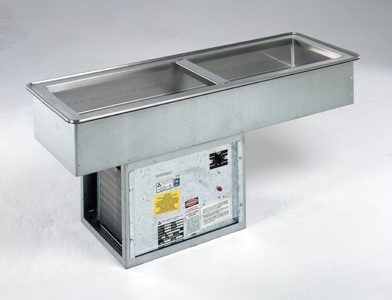

WCMDCL slim-line refrigerated cold pan with side coils by Atlas Metal

(Full Depth with Side Coils; Non NSF-7)

The slim-line design can be installed in extra narrow width counters. The unit is used with standard 12″ x 20″ pans, and in the long configuration, the overall cold pan will only require 16″ of the clear counter space. The cold pan is available in the standard 4-5/8″ depth and the 9-3/4″ full depth.

Features

Slim-line configuration – it can install in counters only 16″ wide
Accommodates your deepest pan or insert—9-3/4″ deep
WCMDCL units have refrigerated copper tubing around all sides and base—meets your toughest health department standards
Fully insulated for maximum efficiency and energy savings
Factory applied gasket makes installation a snap and seals units to the counter top, thus eliminating seepage
Accommodates standard 12″ x 20″ pans with the use of separator channel(s), or fractional size pans with the use of optional adapter bars
1-Year Parts & Labor Warranty
NSF Certified (non NSF-7); UL Listed

Top

Constructed of 18-gauge, type 304 stainless steel, die stamped with a raised perimeter bead.
There shall be a solid vinyl gasket under the beaded edge to form a seal to the counter top, thus preventing seepage or marring of the countertop.
Embossed mounting lugs are provided along the inner surface of the top to hold a full set of removable separator channels in place.

Liner

The inner liner shall be 18-gauge, type 304 stainless steel, one piece construction, all welded, ground and polished to a uniform finish.
All corners are coved with a minimum 1/4″ radius.
The WCMDL liner has copper tubing firmly soldered to the exterior BOTTOM ONLY. The WCMDCL liner has copper tubing firmly soldered to the exterior BOTTOM AND ALL SIDES.
4″ diameter drain with strainer, 4″ PVC nipple, and valve is provided.

Insulation

The pan is fully insulated with high density polystyrene, 1″ thick on all sides, 1-1/2″ thick on the bottom and enclosed with a 22-gauge galvanized steel outer case.

Refrigeration System

The compressor housing shall be fabricated from 14-gauge galvanized angles and bolted to the base of the unit.
A fully self-contained condensing unit is provided, with a hermetically sealed compressor and a thermostat control.
The system is fully charged with CFC-free refrigerant and ready to operate.

Note

Proper ventilation must be provided in counter.

Electrical

The unit will be wired for 15-amp, 120-volt, single-phase operation, with an on/off thermostat switch and pilot light.
A 6′-long, 3-wire cord and plug (NEMA 5-15P) will be provided.
