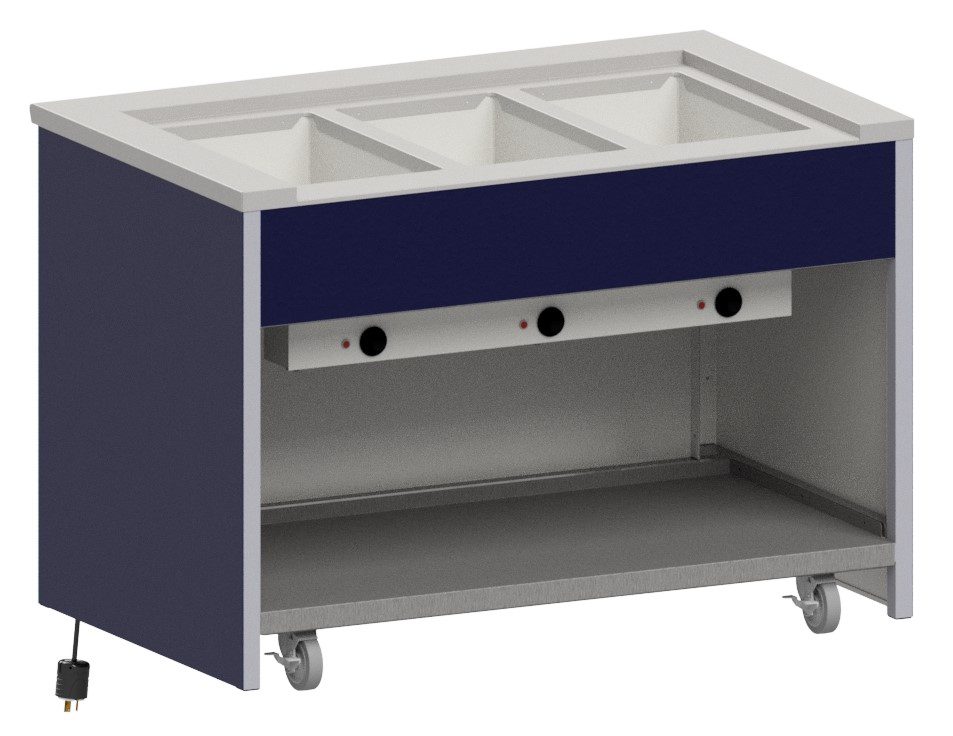

INFH – Hot Serving Units

• Fully insulated to retain heat – open, bain marie construction with single thermostat control
• Positive self-locking device – keeps tops level and equipment in place
• Fully mobile – each unit is provided with 4” diameter swivel casters, two with brakes
• Versatile – available in a wide range of sizes and a wide variety of finishes and colors
• US – Undershelf, stainless steel, removable
• Wet or dry operation
• UL Listed

Constructed of 16-gauge, type 304 stainless steel, die-formed, welded, ground and polished.

• Frame construction shall be of hi-tensile stainless steel square tubing, 1-1/4″ x 1-1/4″.
• Frame sections are welded construction, ground and polished to a uniform finish.
• Front and end panels shall be constructed of 18-gauge stainless steel with a 1/16”-thick plastic laminate.
• Rear aprons shall be constructed of 16-gauge stainless steel with a 1/16”-thick plastic laminate finish.
• Owner to specify finish.
• An 18-gauge stainless steel removable undershelf is included.
• An integral locking device shall be provided to align and retain cart positioning when two or more carts are joined.

• The cart includes a WH series built-in hot pan, bain marie style, installed in the top.
• Constructed of 18-gauge, type 304 stain-less steel, with raised perimeter bead and solid vinyl gasket.
• The pan is fully insulated with high density fiberglass insulation, 1” thick on all sides, 2” thick on the bottom and enclosed with a 22-gauge galvanized steel outer case.
• The interior liner is fabricated with 1/4” radius coved corners.
• A 3/4” diameter drain with strainer, 4” brass nipple and valve is provided.
• Embossed mounting lugs are provided, along the inner surface of top, to hold the removable separator channel(s) in place.
• Separator channel(s) to hold 12”x20” food pans are included.

• The unit is provided with 850 watt heating elements, pre-wired to a single thermostat control, with a pilot light.
• A 6’ long, 3-wire cord and plug is provided, extending from the control box located under the unit, on the operator’s left.
• Bottom of outer case can be removed for access to electrical components.
• Available in single phase power only.

• The casters shall be 4” diameter, non-marking rubber tired, swivel type with ball bearings in both swivel and axle raceways, provided with grease fittings.
• Both casters on operator’s side have toe activated brakes.
