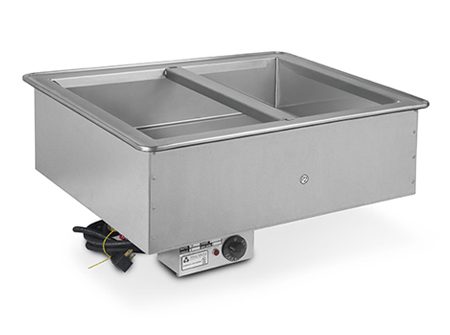

WH single-control hot pan with stainless steel heated wells by Atlas Metal

The WH series hot pan is a versatile, electrically heated drop-in serving unit that can be used as an open bain-marie or with standard 12″ x 20″ steam table pans. The pan construction enables the unit to be used wet or dry. Its stainless steel inner liner is free of all obstructions for ease of cleaning.

The pan is fully insulated and provided with a factory-applied gasket so that it can be installed in the finest wood fixtures, without marring the countertop. All units are furnished with a 3/4″ diameter drain and come in five convenient sizes, to accommodate two to six 12″ x 20″ steam table pans. Adapter bars are available for fractional size pans.

Features

Fully insulated to retain heat—protects fixtures and saves energy
Open bain-marie construction
Thermostatically controlled
Factory-applied gasket—makes installation a snap and seals units to the countertop, thus eliminating seepage
Accommodates standard 12″ x 20″ pans with the use of separator channel(s), or fractional size pans with the use of optional adapter bars
Wet or Dry operation
1-Year Parts & Labor Warranty

Top

Constructed of 18-gauge, type 304 stainless steel, die stamped with a raised perimeter bead.
There shall be a solid vinyl gasket under the beaded edge to form a seal with the countertop, thus preventing seepage or marring of the countertop.
Embossed mounting lugs are provided along the inner surface of the top to hold the removable adapter bars in place.

Liner

The inner liner shall be 18-gauge type 304 stainless steel, one piece construction, all welded ground and polished to a uniform finish.
All corners are coved with a minimum 1/4″ radius.
A 3/4″ diameter drain, with strainer, brass nipple, and valve is provided.

Insulation

The pan is fully insulated with high density fiberglass insulation, 1″ thick on all sides, 2″ thick on the bottom and enclosed by a 22-gauge galvanized steel outer liner.
The entire unit is removable without the use of tools.

Electrical

The unit is provided with individual 850 watt heating elements, pre-wired to a single thermostat control with a pilot light.
A 6′-long, 3-wire cord and plug is provided, extending from the control box located under the unit, on operator’s left.
Available for single phase power only.
