WDF – Ice Cream Freezer

Find a Rep

Ask a Question

Find a Rep Ask a Question

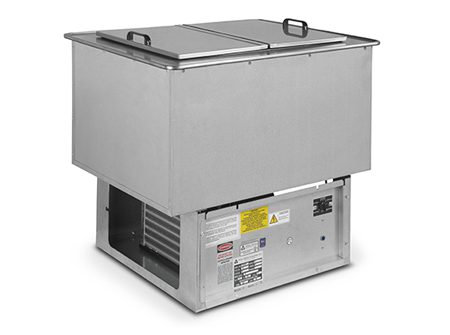

WDF drop-in ice cream freezer with stainless steel insulated lid by Atlas Metal

(Refrigerated, Self-Contained)

The WDF series ice cream deep freezer lets you bring the profitability of reach-in ice cream service to your serving line. Ideal for ice cream or any frozen dessert, this drop-in can be installed in virtually any counter and is fully self-contained—just plug it in and turn it on.

The pan is fully insulated for maximum efficiency and energy savings, and is provided with a factory-applied gasket so that it can be installed in the finest wood fixtures without marring the countertop. The interior is constructed of stainless steel. The deep freezer is also perfect for a beer mug or salad plate chiller and can be specified with a Plexiglass lid.

Features

Fully insulated for maximum efficiency and energy savings
Removable S/S hinged lid
Factory-applied gasket—makes installation a snap and seals units to the counter top, thus eliminating seepage
Ideal for frozen dessert or use it as a mug or plate chiller
1-Year Parts & Labor Warranty
NSF Certified and UL Listed

Top

Constructed of 18-gauge, type 304 stainless steel, die stamped with a raised perimeter bead.
There shall be a solid vinyl gasket under the beaded edge to form a seal with the countertop, thus preventing seepage or marring of the countertop.

Liner

The inner liner shall be 18-gauge, type 304 stainless steel, one piece construction, all welded, ground and polished to a uniform finish.
All corners are coved with a minimum 1/4″ radius on the horizontal edges and a minimum 3/4″ radius on the vertical edges.
The liner has copper tubing firmly soldered to the exterior sides and bottom.
The unit is provided with an all-stainless-steel, insulated, hinged, lift-off lid with plastic-coated pulls.

Insulation

The unit is fully insulated with high density polystyrene, 2-1/2″ thick on all sides, and enclosed with a 22 gauge galvanized steel outer liner.

Refrigeration

The compressor housing shall be fabricated from 14-gauge galvanized angles and bolted to the base of the unit.
A fully self-contained condensing unit is provided with a hermetically sealed compressor and a thermostat control.
The system is fully charged with CFC-free refrigerant and ready to operate.

Note

Proper ventilation must be provided in counter.

Electrical

The unit will be wired for 15-amp, 120-volt, single-phase operation, with an on/off thermostat switch and pilot light.
A 6′-long, 3-wired cord and plug (NEMA 5-15P) will be provided.
