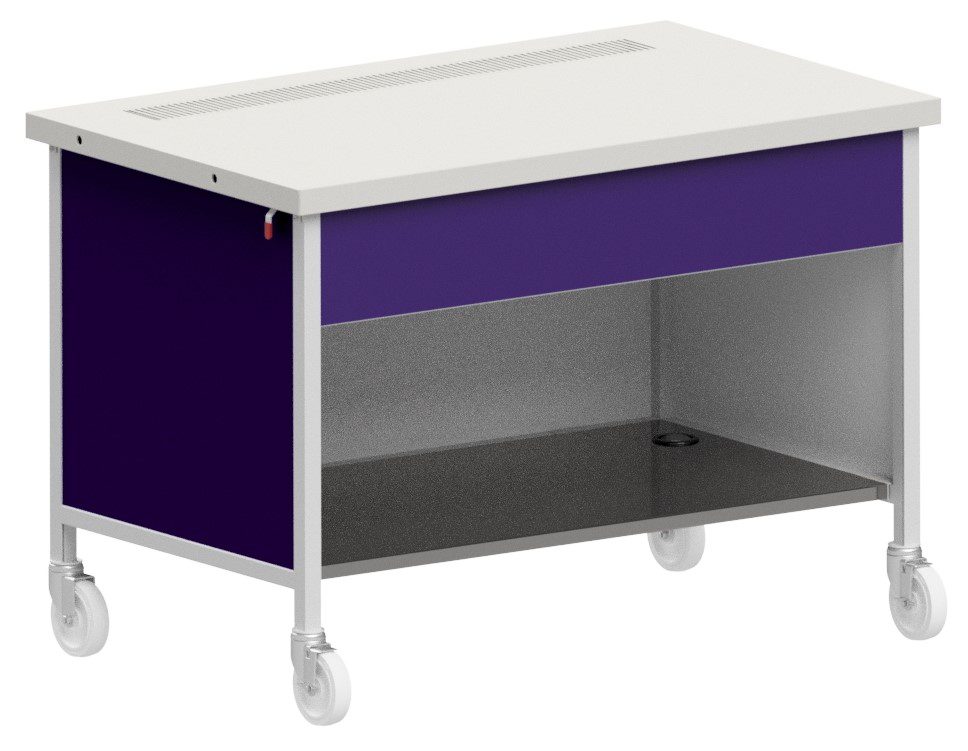

CAU – Beverage Units

(Single or Dual Urn Drain)

The beverage cart provides a convenient, sanitary station for your coffee urn or beverage equipment. Full-length urn drains are available for either single or dual service. Each, would include a removable anti-splash grate, ideal for your beverage service.

The attractive streamlined design, plus the variety of laminates give you a wide range of choices to complement any decor. The unmatched feature of the CA-Cart line is the self-locking device which eliminates loose fasteners or molding strips to lock units together. Simply push the units together; the carts will automatically lock and the top will be flush and level, regardless of the floor’s condition. It’s the right cart for your serving line needs.

Features

  • Anti-splash grate—removable for ease in cleaning
  • Positive self-locking device—keeps tops level and equipment in place
  • Fully mobile—each unit is provided with 5″ diameter swivel casters, two with brakes
  • Versatile—available in a wide range of sizes and a wide variety of finishes and colors
  • 1-Year Parts & Labor Warranty

Top

  • Constructed of 16-gauge, type 304 stainless steel, die-formed, welded, ground and polished.
  • An integral locking device shall be provided to align and retain cart positioning when two or more carts are joined.

Body

  • Frame construction shall be of hi-tensile aluminum square tubing, 1-1/4″ x 1-1/4″.
  • Frame sections are welded construction, ground and polished to a uniform finish.
  • Body is complete with front panel of plastic laminate on .050 aluminum.
  • Owner to specify finish.

Urn Through

  • The cart is complete and includes a WU built-in urn stand installed in the top.
  • Constructed of 18-gauge, type 304 stainless steel with raised perimeter bead and solid vinyl gasket.
  • The urn drain is formed in the top, 4-3/4″ W x 1-3/4″ D, with 1/4″ minimum coved corner.
  • The trough is provided with a removable, die-stamped anti-splash grate.

Casters

  • The casters shall be 5″ diameter non-marking rubber tired, swivel type with ball bearings, in both swivel and axle raceways, and provided with grease fittings.
  • Both casters on operator’s side have foot-activated brakes.

Models

  • CAU-2
  • CAU-3
  • CAU-4
  • CAU-5

Resources

Spec Sheet

CAD File

Revit File

KCL CAD/Revit

Certifications

  • UL Classified EPH Logo, Custom Food Service Equipment NSW/ANSI #2 3523
  • Atlas Metal UL Listed 39F7 label for custom-built food service equipment
