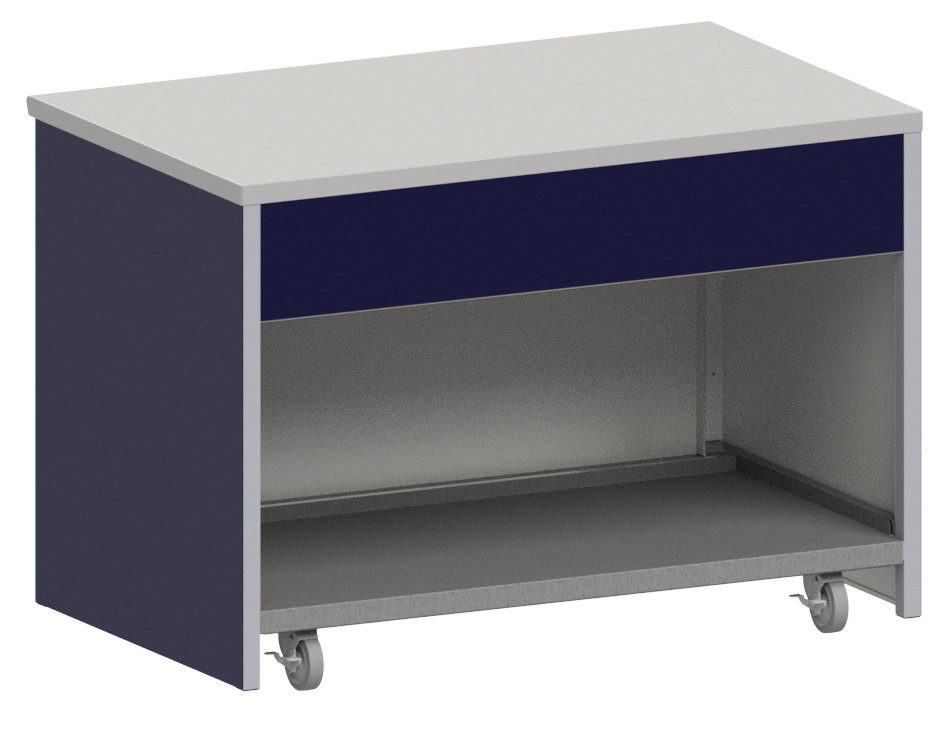

BLU solid top utility unit with open storage shelf by Atlas Metal

(With Undershelf)

For Cafeteria Style with Open Base. The definite all-purpose unit—work station, beverage, soup/sandwich, coffee or pastry/dessert counter—you name it. This is utility cart series does it all. Available in a variety of lengths to provide total versatility.

A wide range of attractive plastic laminate colors is available, or urethane-painted panels to blend with any decor.

Quality construction provides years of reliable service. Complete reliability—use as an individual unit or joined in a continuous serving line with our exclusive CAM LOCK™ system.

Features

Attractive plastic laminate panels
Economical cost
CAM LOCK™ system

Top

Constructed of 16-gauge, type 304 stainless steel, die-formed, welded, ground and polished to a uniform finish with rolled front edge.

Body

Frame construction shall be of hi-tensile square aluminum tubing, 1-1/4”, with 3-3/4” extruded, vertical radius corners.
Frame sections are all welded construction, ground and polished to a uniform finish.
Body is complete with front panel, end panels and 8-5/8″ rear apron of plastic laminate on .050 aluminum.
Owner to specify laminate finish.
CAM LOCK™ locking system included with each unit to align and retain cart positioning, when two or more units are joined.

Casters

NSF-approved, 5″ diameter non-marking rubber tired, swivel plate caster with grease fittings.
Both casters on the operator’s side have foot-activated breaks.
