Non-Mechanical

BLC – Ice Cold Pan Serving Units

Find a Rep

Ask a Question

Find a Rep Ask a Question

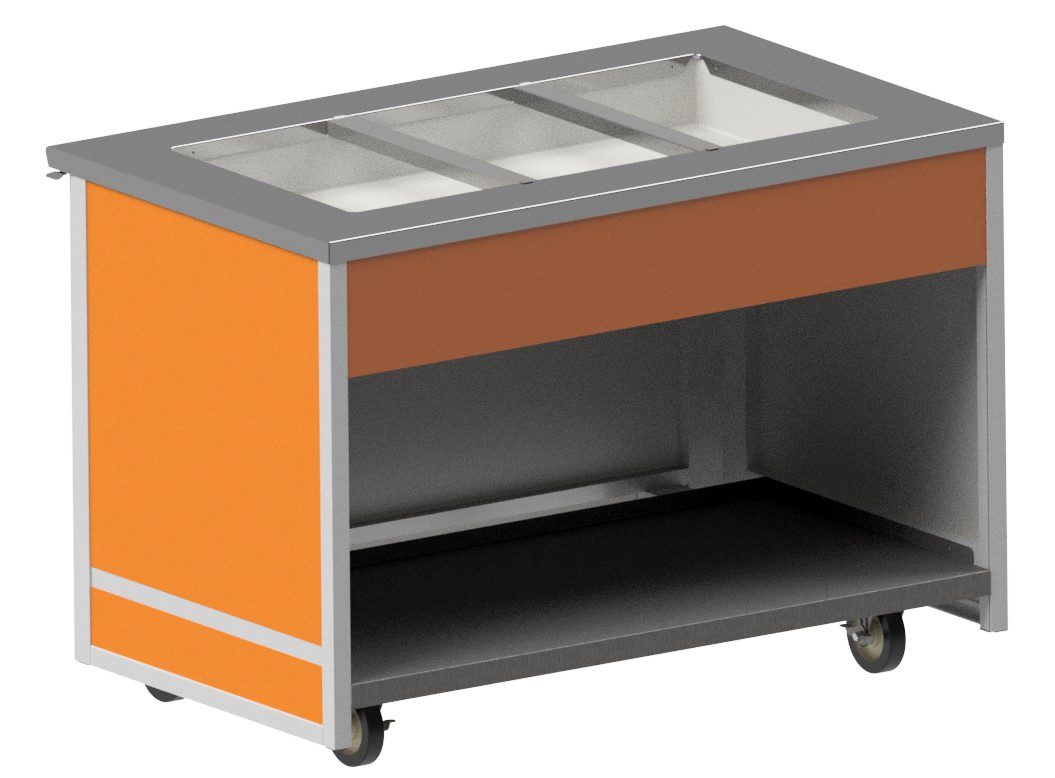

BLC ice cold pan serving unit with open storage shelf by Atlas Metal

For Cafeteria Style with Open Base. Designed to hold salads, desserts and other chilled foods on a bed of ice in 12″ x 20″ serving pans or by directly placing items in the cold pan for a cold, crisp, fresh appearance in any cafeteria, buffet or meal make-up line.

A wide range of attractive plastic laminate colors is available, or urethane painted panels o blend with any decor.

Quality construction provides years of reliable service. Complete reliability—use as an individual unit or joined in a continuous serving line with our exclusive CAM LOCK™ system.

Features

Attractive plastic laminate panels
Economical cost
Fully insulated cold pan
Stainless steel adapter bars
CAM LOCK™ system

Top

Constructed of 16-gauge, type 304 stainless steel, die-formed, welded, ground and polished to a uniform finish with rolled front edge.

Body

Frame construction shall be of hi-tensile square aluminum tubing, 1-1/4”, with 3-3/4” extruded, vertical radius corners.
Frame sections are all welded construction, ground and polished to a uniform finish.
Body is complete with front panel, end panels and 8-5/8″ rear apron of plastic laminate on .050 aluminum.
Owner to specify laminate finish.
CAM LOCK™ locking system included with each unit to align and retain cart positioning, when two or more units are joined.

Ice Cold Pan

The cart is complete and includes an ice cold pan installed in the top.
Constructed of 18-gauge, type 304 stainless steel.
The pan is fully insulated with high-density polystyrene, 1″ thick on all sides, 2″ thick on the bottom and enclosed by a 22-gauge galvanized steel outer liner.
The interior liner is fabricated with 1/4″-radius coved corners and provided with a 3/4″ diameter drain with strainer, 4″ PVC nipple, and valve.
The cold pan will accommodate 12″ x 20 pans of 2-1/2″ and 4″ depths, as well as fractional-size pans.

Casters

NSF-approved, 5″ diameter non-marking rubber tired, swivel plate caster with grease fittings.
Both casters on the operator’s side have foot-activated brakes.
