WU/WUD – Urn Drain

Find a Rep

Ask a Question

Find a Rep Ask a Question

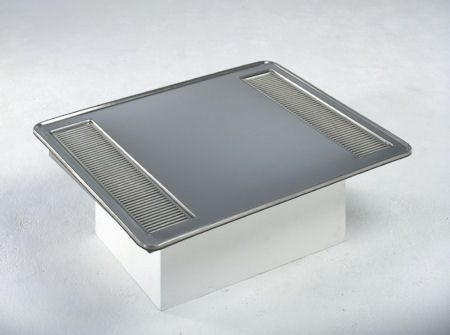

WU/WUD beverage urn drain with removable anti-splash grates by Atlas Metal

(Beverage Station with Drain Trough)

Protect your counter’s surface and make your operation more efficient with the WU series urn drain. You can bring coffee or beverage service to virtually any counter, guarding its surface while providing a removable anti-splash grate and drain trough.

The pan is provided with a factory-applied gasket, so that it can be installed in the finest wood fixtures without marring the countertop. The pan is constructed of stainless steel. The drain trough is provided with a 3/4″ stainless steel drain and can be fabricated for single or double-sided service.

Features

Factory-applied gasket—makes installation a snap and seals units to the countertop, thus eliminating seepage
Anti-splash grate—removable for ease in cleaning
1-Year Parts & Labor Warranty

Top

Constructed of 18-gauge, type 304 stainless steel, die stamped with a raised perimeter bead.
There shall be a solid vinyl gasket under the beaded edge to form a seal with the countertop, thus preventing seepage or marring of the countertop.
Stainless steel flat top extends the full length and width.

Urn Trough

(1 EA.), on WU-series units; (2 each), on WUD-series units—4-3/4″ x 1-3/4″ deep drain trough is/are provided in each top section, with 1/4″ minimum coved corners for ease of cleaning.
The trough has a 3/4″ diameter stainless steel drain fitting welded to one end on operator’s left.
The trough is provided with a removable, die stamped anti-splash grate.
