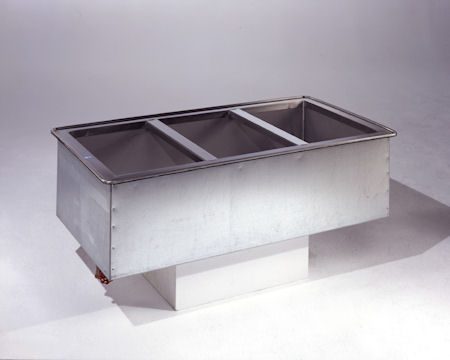

WIC standard-depth iced cold pan with stainless steel pan divider by Atlas Metal

WIC Series Pans & Cases

The WIC series cold pan enables you to bring an attractive dessert salad display to virtually any counter. The standard depth of 4-5/8″ is ideal for your iced display; perfect for all your cold serving needs.

The pan is fully insulated and provided with a factory-applied gasket so that is can be installed in the finest wood fixtures without marring the countertop. The pan is constructed of stainless steel and is provided with a 3/4″ stainless steel drain. It is perfect for your ice display or can be used with standard 12″ x 20″ pans.

Features

Fully insulated to hold ice longer
Factory-applied gasket—makes installation a snap and seals unit to the countertop, thus eliminating.
Can be used for ice display, standard 12″x 20″ pans, or fractional size pans with the use of adapter bars
1-Year Parts & Labor Warranty

Top

Constructed of 18-gauge, type 304 stainless steel, die stamped with a raised perimeter bead.
There shall be a solid vinyl gasket under the beaded edge to form a seal with the countertop, thus preventing seepage or marring of the counter top.
Embossed mounting lugs are provided along the inner surface of the top to hold the removable adapter bars in place.

Liner

The inner liner shall be 18-gauge, type 304 stainless steel, one piece construction, all welded, ground and polished to a uniform finish.
All corners are coved with a minimum 1/4″ radius.
A 3/4″ diameter drain with strainer, 4″ PVC nipple, and valve is provided.

Insulation

The pan is fully insulated with high density polystyrene, 1″ thick on all sides, 2″ thick on the bottom and enclosed with a 22-gauge galvanized steel outer lines.
The entire unit is removable without the use of tools.
